LED backlight: Six core forces that illuminate the display technology revolution
Abstrakt:
This article deeply analyzes the core principles and outstanding advantages of LED backlight technology. From the efficient light-emitting mechanism of LED, the precise light guide of the light guide plate, to the ultimate utilization of light energy by the reflector and anti-reflection film, it reveals the inevitability of replacing the traditional CCFL backlight. The six core advantages – extraordinary energy efficiency, uniform picture quality, slim design, ultra-long life, environmental protection characteristics and broad prospects, together establish the unshakable dominance of LED backlight in the modern display field. Its development is not only a technological leap, but also a profound revolution in human visual experience.
Today, when liquid crystal display (LCD) technology dominates the visual world, it is the hero behind the scenes – the backlight source that gives it a fresh life. When the traditional cold cathode fluorescent lamp (CCFL) gradually becomes history, LED backlight completely reshapes the display rules with its excellent performance. Understanding its precise working principle is the key code to interpret this visual revolution.
1. Quantum Leap in Energy Conversion: The Core of LED Light Emission
LED (light emitting diode) is essentially a semiconductor PN junction device. Its core lies in electroluminescence: when current flows, electrons and holes recombine in specific semiconductor materials (such as GaAs, GaN), and the excess energy is accurately released in the form of photons. This direct electro-optical conversion mechanism is extremely efficient (far exceeding CCFL) and significantly reduces power consumption. According to a report by the U.S. Department of Energy, LED technology has achieved energy efficiency levels far exceeding traditional light sources, and the laboratory white light LED light efficiency has even exceeded the 200lm/W mark, setting a benchmark for energy saving in display devices.
2. Light Tamer: Precision Uniform Lighting of Light Guide Plate

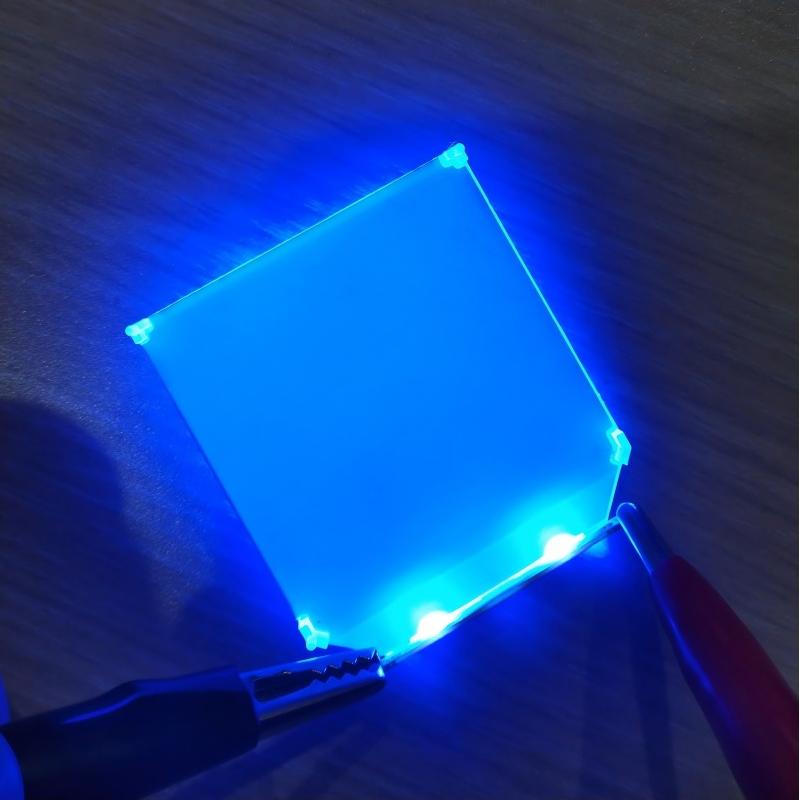

Point-shaped LED light sources need to be converted into uniform surface light sources, and this task is undertaken by Light Guide Plate (LGP). This precision optical component made of PMMA (acrylic) or PC (polycarbonate) has a unique microstructure (dots or grooves) on the surface. After the light enters the guide plate, it propagates inside the plate based on the principle of total internal reflection (TIR). The microstructure destroys the total reflection condition, so that the light is evenly scattered to the entire plate surface in the preset direction, which creates the basis for the uniform and consistent bright field of the display. Its design can be called optical precision engineering.
3. Guardian of light energy: the efficiency-enhancing mission of the reflector
No matter how sophisticated the design of the light guide plate is, some light will still escape from the bottom or side. Reflectors (usually highly reflective white films or coatings) are like loyal guards, efficiently reflecting these “escaped” lights back into the light guide plate. Research by the Lawrence Berkeley National Laboratory under the U.S. Department of Energy pointed out that high-quality reflective films can significantly improve the overall light efficiency of the backlight system, directly reducing the power and number of LEDs required to achieve the same brightness.
4. The key to transparency: anti-reflection coating eliminates interface loss
Before light leaves the guide plate and shoots toward the liquid crystal layer, it needs to pass through multiple medium interfaces (air/guide plate, guide plate/optical film, etc.). Each interface will cause about 4% reflection loss due to the difference in refractive index. Anti-reflection coating (ARC) is based on the principle of thin film interference. It coats a multi-layer optical film with a specific thickness and refractive index on the surface of the substrate to offset the interface reflected light, thereby greatly improving the transmittance (often reaching more than 99%). The literature of the International Society for Optical Engineering (SPIE) emphasizes that anti-reflection coating is crucial to improving display contrast, color saturation and energy efficiency.
5. Multi-dimensional transcendence: LED backlight comprehensively innovates CCFL
- Energy efficiency king: LED electro-optical conversion efficiency far exceeds CCFL. Combined with local dimming, the power consumption of the whole machine can be sharply reduced by 30%-50%, meeting the strict global energy efficiency standards.
- Lightweight model: LED is compact, especially the side-entry design, which makes ultra-thin TVs and mobile devices a reality, subverting the aesthetics of industrial design. Market research firm DisplaySearch once pointed out that LED backlight is the core driving force for TV “slimming down”.
- Longevity star: The theoretical life of LED is as long as 50,000-100,000 hours (far longer than CCFL’s 15,000-30,000 hours), which greatly reduces maintenance and electronic waste.
- Environmental pioneer: Completely abandon the toxic mercury element in CCFL, the production and disposal process is more environmentally friendly, in line with global green regulations.
- Picture quality leap: High color gamut LED (such as quantum dot enhanced) achieves a wider and brighter color space (NTSC >100%); dynamic dimming brings deep black and ultra-high contrast.
6. Future vision: continuous evolution and broad prospects
LED backlight is far from the end. Mini-LED backlight uses thousands of tiny LEDs to achieve more precise zone dimming, and the picture quality is close to OLED. Micro-LED is known as the “ultimate display”. Each pixel is self-luminous, combining the advantages of LED’s high efficiency and long life with OLED’s perfect black field. Innovative forms such as flexible and transparent displays are also booming with the support of LED backlight/luminescence technology. According to IDTechEx’s forecast, the Micro-LED display market will usher in explosive growth in the next decade.
LED backlight technology is centered on semiconductor physics, and with the help of precision optical design (light guide plate, reflector, anti-reflection film), it has achieved a full range of transcendence from energy efficiency to image quality. The six core advantages – high efficiency and energy saving, uniform brightness, extreme thinness, durability, green environmental protection, and unlimited potential – not only established its current mainstream status, but its continuous evolution (Mini/Micro-LED) will also illuminate the path to the future display world. This macroscopic visual revolution triggered by microscopic quantum effects is still profoundly rewriting the way we see the world – from the brightness of every inch of the screen, we can see the unremitting taming of light and color by technology.
